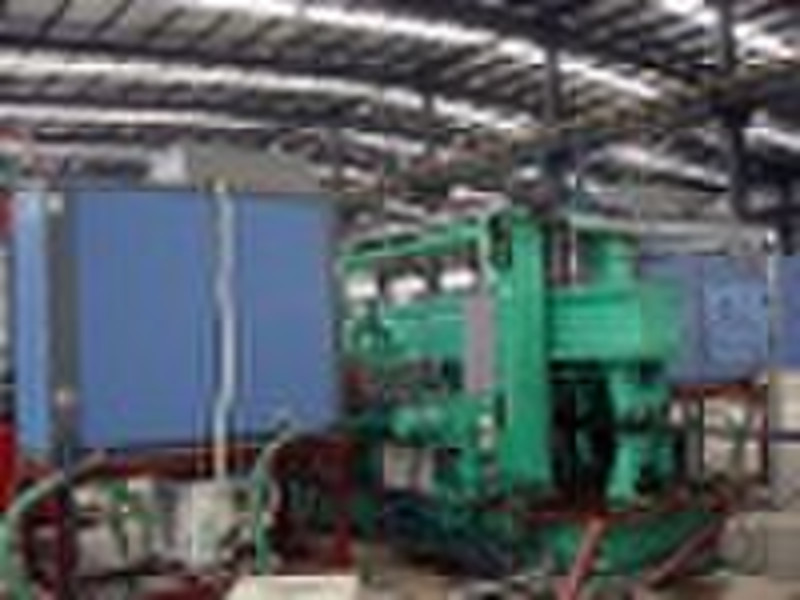

H-beam mill line

The contact type solid state high frequency welding equipment for H beam:1. Function: Achieve the welding oftop flange plate,bottom flange plate and web plate.2. Composition(for single set): Switchgear rectifying cabinet, inverter output cabinet, connection cable, circulation soft water cooling system, central console, 3-D positioning table, output arm and contact head. 3. Features: high efficiency, less energy consumption, and high-quality welding effect. Compared with vacuum tube welder, under the same welding conditions, the new generation solid state high frequency welding equipment has distinct energy-saving effect with power saving of more than 30%, high product quality, simple operation and less maintenance work. 4. H beam welding for different material compositon5. To realize micro-tension production and decrease welding stress.6. Welding method: contact welding.7. Working mode: continious systemTypical Application for two sets of 300kW H-beam welder: Model for EquipmentTwo sets of GGP300-0.3-HCWelding Methodcontact weldingSpecification56mm×50mm×60mm×4mm H-beamWelderStatusDC Voltage440 V(1) 440 V(2)DC Current620 A(1) 680 A(2)DC Power273 kW(1)300 kW(2) Frequency276 kHz(1) 270 kHz(2)Welding Speed39m/min
